Dominate the deepest mud holes and steepest climbs with the SuperATV 6 Inch Portal Gear Lift from Cheetah’s Powersports. Engineered specifically for the Polaris Ranger 1000, this lift delivers the ultimate combination of ground clearance and performance. The precision ground gears are crafted from 9310 alloy billet steel to ensure a cool and quiet ride while the 4340 hardened steel drive shafts provide the rugged durability needed for aggressive off-roading. By integrating a built-in gear reduction, this system significantly decreases drivetrain stress so you can run larger tires without sacrificing power.
Innovation meets reliability with the dual idler gear configuration that maximizes internal strength and provides a functional 2 inch total extension. Unlike heavy alternatives, this portal lift is designed to be lighter than the competition while utilizing advanced gaskets to keep debris out of your housings. Whether you choose billet or cast aluminum, the universal hub ensures a perfect fit for any major bolt pattern. Upgrade your Ranger 1000 today and experience the ground-breaking torque and clearance that only SuperATV portals can provide.
Features:
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1” front and rear offset - 2” total extension
- Lighter than the competition
6” Portal Gear Lift Includes:

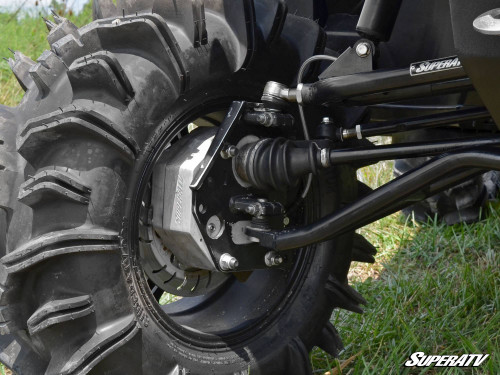

- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets or O-rings, and thrust
- bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Steel steering arms
- Extended brake lines
- All required hardware, including recessed castle nut socket
Wheel Requirements:
- 18” or larger wheel required
- 18” wheels cannot exceed 4-1/2” backspacing
- 20” and larger wheels cannot exceed 5” backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
- f you plan on installing this portal kit with a preexisting RIDE System Rear Steering Kit or plan on adding one in the future, call us. We’ll make sure you get the correct compatible parts.
- This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
- ⚠ California Proposition 65 Warning ⚠ WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
