Name: SuperATV 6 Inch Portal Gear Lift - Kawasaki Teryx KRX 1000
Brand: SuperATV
SKU: PGH6-4-88-CONFIG
Availability: InStock

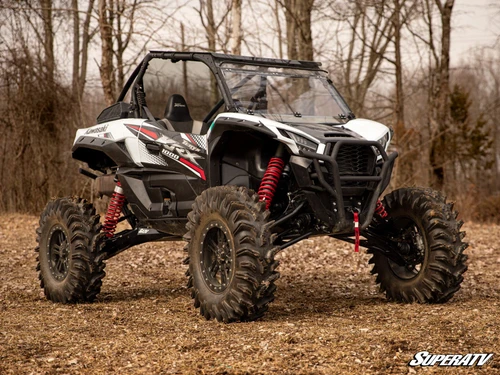

SuperATV 6 Inch Portal Gear Lift - Kawasaki Teryx KRX 1000

(No reviews yet) Write a Review

$3,391.95 - $5,474.90

Current Stock:

Quantity:

Adding to cart… The item has been added

SKU:

PGH6-4-88-CONFIG

Code:

SATV

Description
Fitment
Important Info

Unleash the full potential of your Kawasaki Teryx KRX 1000 with the SuperATV 6 Inch Portal Gear Lift from Cheetah’s Powersports. This powerhouse upgrade features a dual idler gear configuration that maximizes internal strength and adds a 1 inch front and rear offset. This 2 inch total wheelbase extension provides the extra stability needed for vertical climbs and high speed desert runs. By delivering a 30% gear reduction, these portals take the pressure off your drivetrain and allow you to turn massive tires with ease.

Crafted for those who ride hard, these portals utilize precision ground gears made from 9310 alloy billet steel to ensure a cool and quiet ride. The 1.5 inch diameter 4340 hardened steel drive shafts provide incredible durability while the advanced gaskets keep the housing completely sealed from mud and grit. This kit is engineered to be over 25 pounds lighter than the competition to help you maintain a superior power to weight ratio. With a universal hub that fits all major bolt patterns, your KRX will be ready to dominate the most punishing terrain.

Features:

Available with billet or cast aluminum housings
Dual idler gear configuration maximizes strength
Cool, quiet, precision ground gears made from 9310 alloy billet steel
1.5 in. diameter 4340 hardened steel drive shaft
Housings use advanced gaskets that don’t let anything through
Universal hub fits all major bolt patterns
Gear reduction reduces stress on your drivetrain
Dual idler gear configuration adds a 1” front and rear offset—2” total extension
Lighter than the competition total, which is 25+ lb. lighter than the competition

6” Portal Gear Lift Includes:

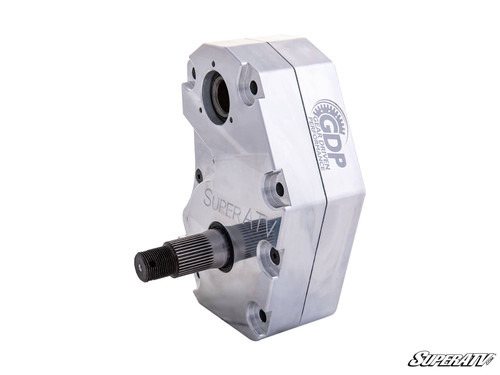

(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings.
(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
(4) Specialized steel alloy backing plates
(4) Steel caliper mounting plates with spacers
(2) Steel steering arms
Extended brake lines with parking brake and brake cable brackets
All required hardware, including recessed castle nut socket

Wheel Requirements:

18” or larger wheel required
18” wheels cannot exceed 4-1/2” backspacing
20” and larger wheels cannot exceed 5” backspacing
Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer

This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
