Transform your Honda Pioneer 520 with the SuperATV 4 Inch Portal Gear Lift designed to improve both stance and performance. By increasing your track width by 4 inches per side, this lift adds stability and enhances handling on rugged trails. Precision-ground gears made from 9310 alloy billet steel deliver quiet, smooth operation while reducing stress on your drivetrain.
Engineered for durability, this portal lift features dual idler gears for added strength and a subtle offset that improves tire clearance without compromising performance. Available with billet or cast aluminum housings, it is lighter than many competitors and built to handle serious off-road use. Upgrade your Pioneer 520 for superior control and confidence on every trail.
Features:

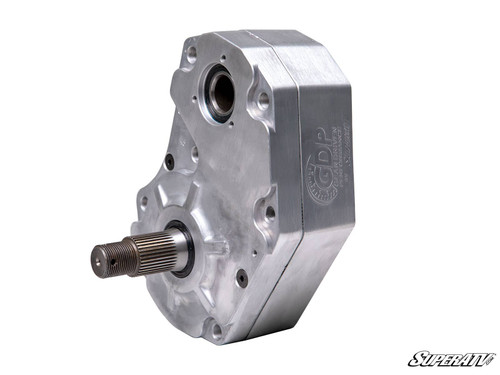

- Available with billet or cast aluminum housing
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1” offset
- Lighter than the competition
4” Portal Gear Lift Includes:

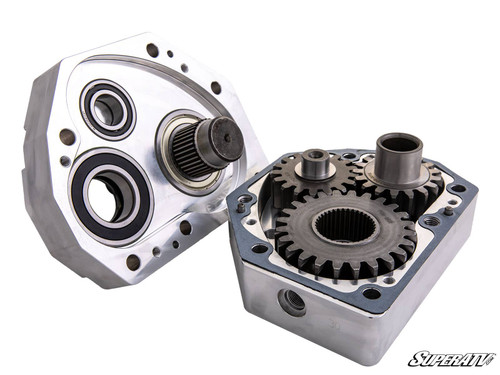

- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (4) Caliper mounting plate shims
- (2) Steel steering arms
- (8) Bushings
- (4) Sleeves
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Steering stop kit
Wheel Requirements:
- 14” or larger wheel required
- Cannot exceed 5” backspacing
- Not compatible with dual beadlock wheels
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
- This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
