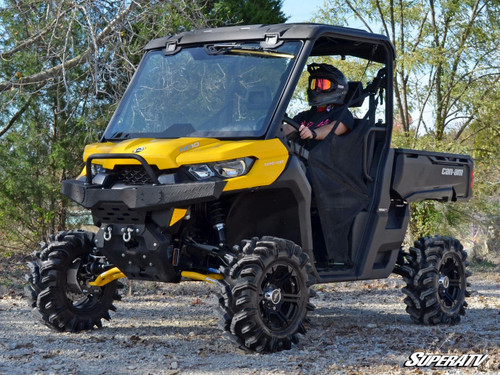

Turn your 2018 to 2021 Can-Am Defender HD10 into a true trail crusher with the SuperATV 4 Inch Portal Gear Lift. The dual idler gear design boosts strength while delivering extra clearance and a wider stance, giving you more confidence in mud, rocks, and deep ruts.
Precision-ground gears reduce drivetrain stress for smoother power transfer, helping your Defender work harder without working itself to death. With lightweight aluminum housings and a universal hub that fits all major bolt patterns, this portal lift is built for serious riders who demand durability and performance on every ride.
Features:
- Available with billet or cast aluminum housing
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 3/4” front and rear offset—1.5” total extension
- Lighter than the competition
4” Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings.
- (4) Universal hubs and stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Steel steering arms
- Extended brake lines
- All required hardware, including recessed castle nut socket
Wheel Requirements:
- 14” or larger wheel required
- Wheels cannot exceed 4-1/2” backspacing
- Not compatible with dual beadlock wheels
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
- This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
- ⚠ California Proposition 65 Warning ⚠ WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
