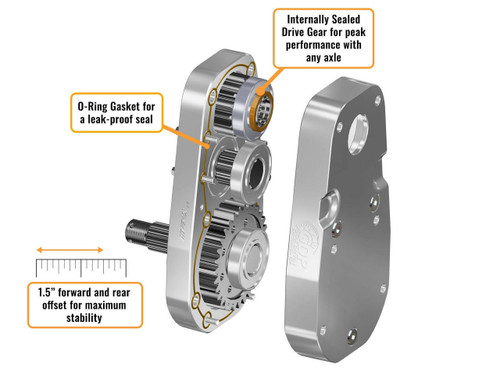

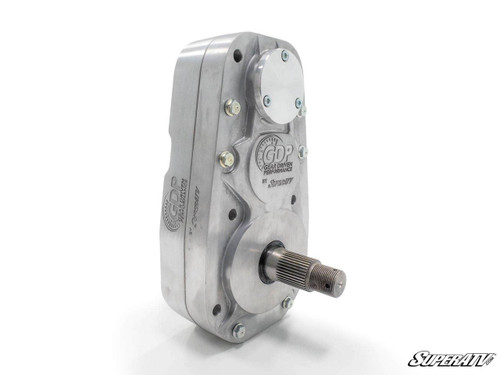

Give your Can-Am Defender HD5 the ground clearance and drivetrain relief to tackle terrain that would stop a stock machine in its tracks. The SuperATV 8 Inch Portal Gear Lift uses precision-ground 9310 alloy steel gears and a 1.5-inch 4340 hardened steel drive shaft for smooth, durable power delivery, while gear reduction helps take stress off your drivetrain. Dual idler gears maximize strength and create a 1.5-inch forward and rear offset, giving you 8 inches of total added width for a more aggressive, capable stance.
Choose billet or cast aluminum housings, then rely on advanced gaskets or O-rings to help seal out water and trail debris. Universal hubs accommodate 4/156, 4/137, 4/115 and 4/110 bolt patterns, giving you more flexibility when building your Defender. Add serious clearance and strength to your HD5 when you get the SuperATV 8 Inch Portal Gear Lift in your cart and conquer the next obstacle!
Features:
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. forward and rear offset
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115 and 4/110
- Gear reduction reduces stress on your drivetrain
8” Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- Extended brake lines
- Steering stop kit (dual idler configuration only)
- All required hardware, including recessed castle nut socket
- Frame stiffener (must select at checkout)
Wheel Requirements:
- 22” or larger wheel required
- Wheels cannot exceed 5” backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
- Big Lift Kit or 2" Forward Offset A-Arms strongly recommended
- This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
- ⚠ California Proposition 65 Warning ⚠ WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
