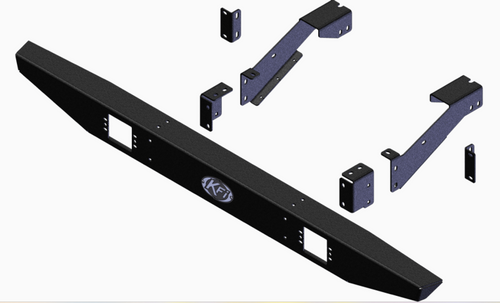

Get more flexibility out of your winch setup with the KFI Multi-Mount Winch Receiver Kit for Polaris Ranger XP 570, 900, 1000 and Gravely Atlas models. Built from tough 3/16-inch American steel, this mount gives you the freedom to easily move your winch between the front and rear of your machine using a standard 2-inch receiver. It’s perfect for riders who want dependable pulling power wherever they need it most.
Each kit is bead blasted before being powder coated black for maximum durability and a clean, long-lasting finish. With all hardware and installation instructions included, setup is quick and hassle-free. Proudly made in the USA, this KFI mount delivers the strength, precision and reliability your machine deserves.
Kit includes:
- (1) 2" Receiver that mounts to the front (#101080)
- (1) 2" Receiver Winch Mount (#100620)
- (1) 20" Quick Connect that gets wired to your winch leads (#QC-20)
- (1) 48" Quick Connect that goes from your winch contactor to the front of your Ranger (#QC-48)
- (1) 120" Quick Connect that goes from your winch contactor to the rear of your Ranger (#QC-120)
- (1) Standard 5/8" Hitch Pin (#ATV-20PIN)
Features:
- 100% made in USA
- Constructed of 3/16" steel
- Unlike all other competitors, our products are metal bead blasted before they are powder coated for the best possible finish prep
- Powder coated black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- Roller fairlead and winch not included
Designed to work with the following winches:
- Note: This mount requires a roller fairlead bracket that comes with most of the winches out there.
- If your winch kit did not come with a fairlead bracket you will need the following:
- For most winches with a 4-Hole 3.00" x 4.875" (STANDARD) KFI #100495
- For most winches with a 4-Hole 3.00" x 6.600" (WIDE) KFI #100695
- For WARN VRX or AXON winches with a 3.00" x 4.875" (STANDARD) KFI #101715
Compatible winches:
- KFI: ST17 / S2000 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
- KFI: AM-25 / AM-35 / AS-25 / AS-35
- KFI: AS-50x / AS-50wx
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
- WARN: AXON 35 / AXON 35-S / AXON 45RC
- WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs
- WARN: RT40 / XT40
- WARN: Vantage 4000lbs / ProVantage 4500lbs
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
- MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- MASTER LOCK: 1500lbs #2955AT
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
- BADLAND: Apex 5500 Wide
- CHAMPION: 14001 and 14061
- SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT: XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" bolt pattern mount-up.
- All with 3.00" x 6.600" bolt pattern mount-up.
- TRAVELLER: 1078311
- TRAVELLER: 1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
- Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
